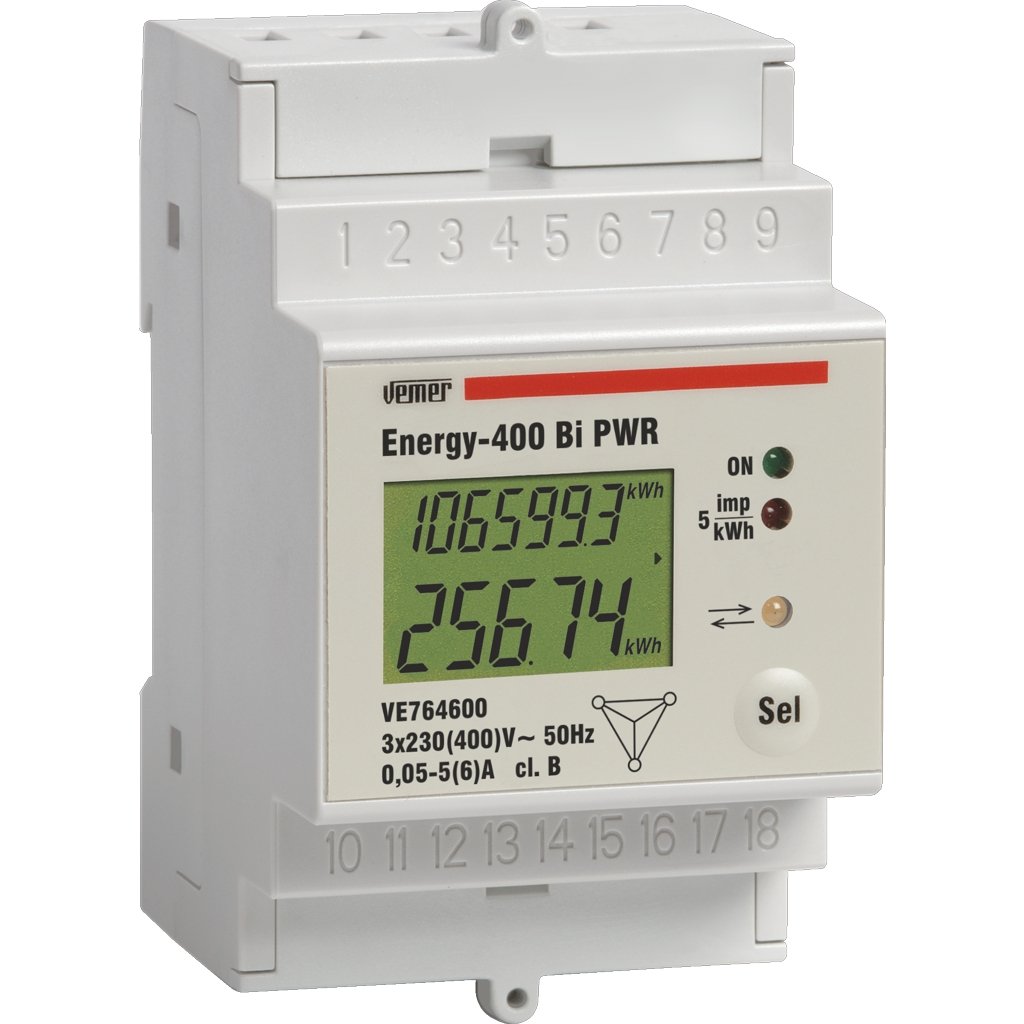

VE764600 ENERGY-400 BI PWR Three-Phase Bidirectional Energy Meter - Measures Withdrawn & Injected Active Power | Ideal for Industrial Power Monitoring & Renewable Energy Systems

DIN bar energy meter for measuring active energy consumption taken and networked in three-phase systems with or without neutral. You can view the measurements of total and partial energy, instant power and power factor. The current must be inserted via the amperometric transformer and the secondary cannot be connected to the ground. It has a pulse output for remote energy counting.

Power supply 230 Vac

Dual counter total and partial (resolution 0.01kWh)

LCD with backlight

Installation on DIN rail

Made in Italy
