240V 50A Kilowatt Hour Meter - Portable Plug-in Energy Monitor for Home, Business & Travel - Track Total Power Usage with Easy Reset - Perfect for Apartments, RV, EV Charging & Solar Systems (14-50 Plug)

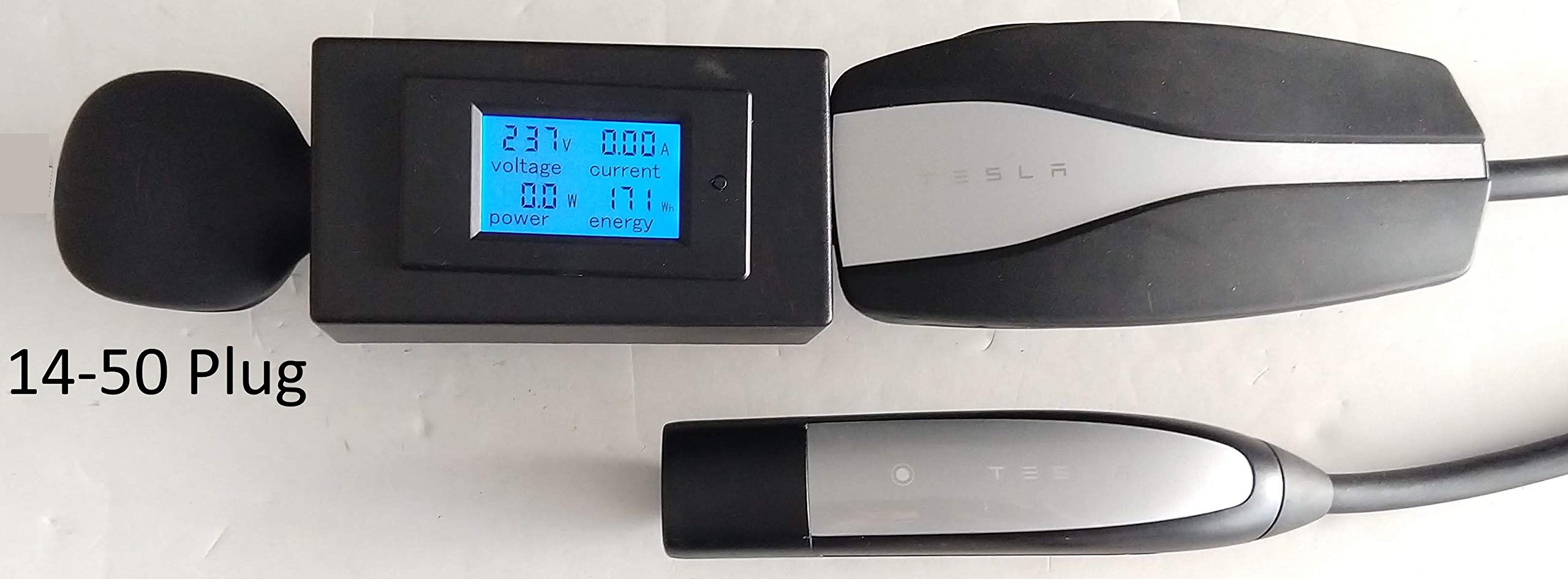

EVDoctor, the #1 Expert on the Web, offers the Amazing EVTRACKER Watt/Energy meter. A quick easy way to track EV Charger Power and Energy use when other methods are not available. Ideal for home, business, apartments, home sharing or on the road. It displays the current energy in use and tracks total energy used. The total energy is stored even when the power is off or when the EVTRACKER is moved between locations. A reset button sets the total energy to zero.The "Standard" version fits any charger with a 240V plug (1450 or other) and has a remote display that can be located at eye level.The "Mobile Connector" version fits Tesla Gen 2 Mobile Connector (EV Charger) and is mounted on a standard Mobile Connector 240V adaptor (1450 or other).INSTALLATION and OPERATION: is very simple. Plug the EVTRACKER into a standard 240V outlet (1450 or other) and then plug the electric vehicle charger into the EVTRACKER. The Voltage, Current (Amp), Watts, and total Energy (kWatt-Hours) used are instantly displayed. Total Energy may be reset with a single button.

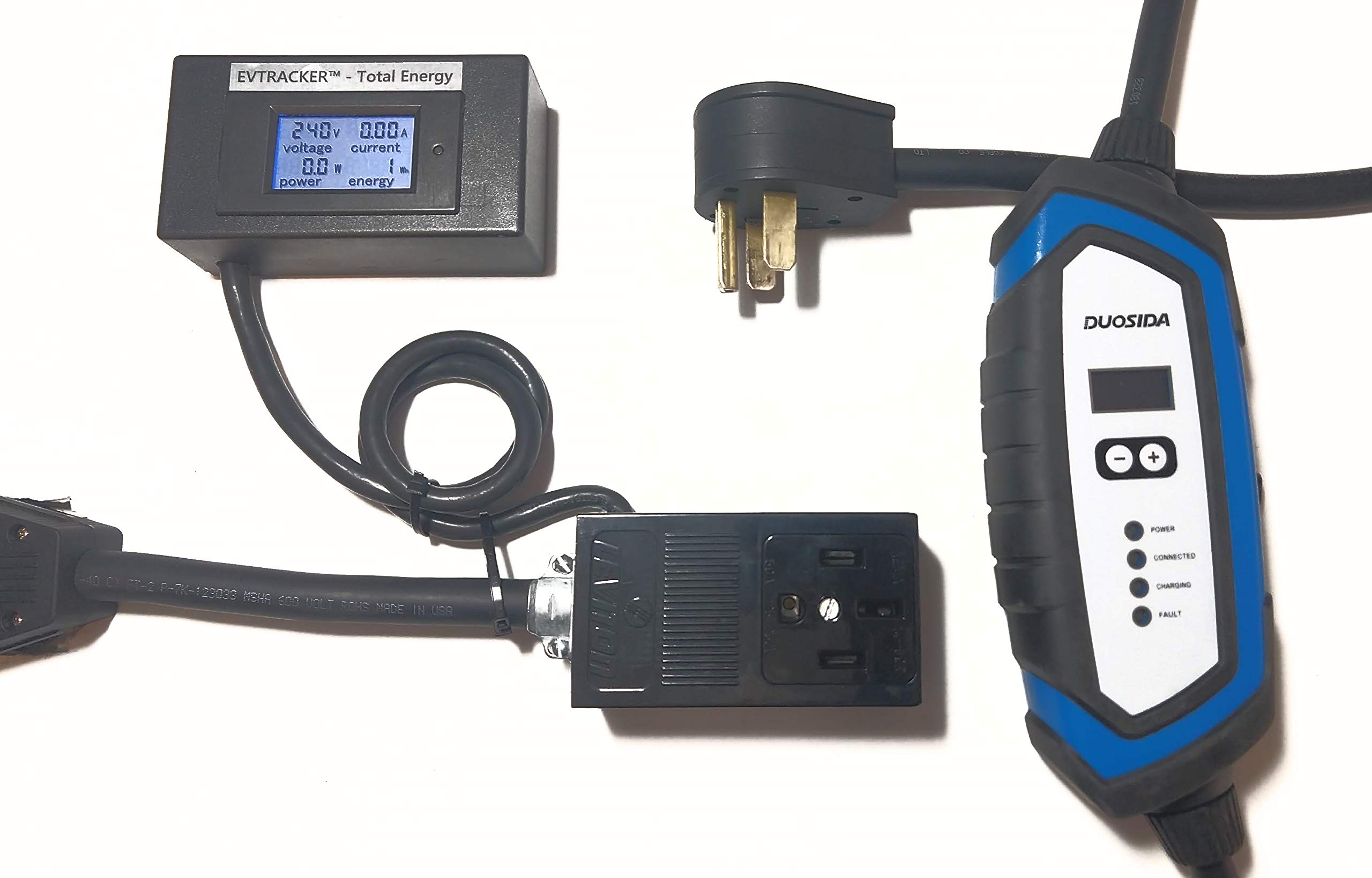

The EVTRACKER is a quick and easy way to track the energy/power by an electric vehicle. It has a 240V male plug on one end and a 240V female outlet on the other where the EV Charger (EVSE) is plugged in..

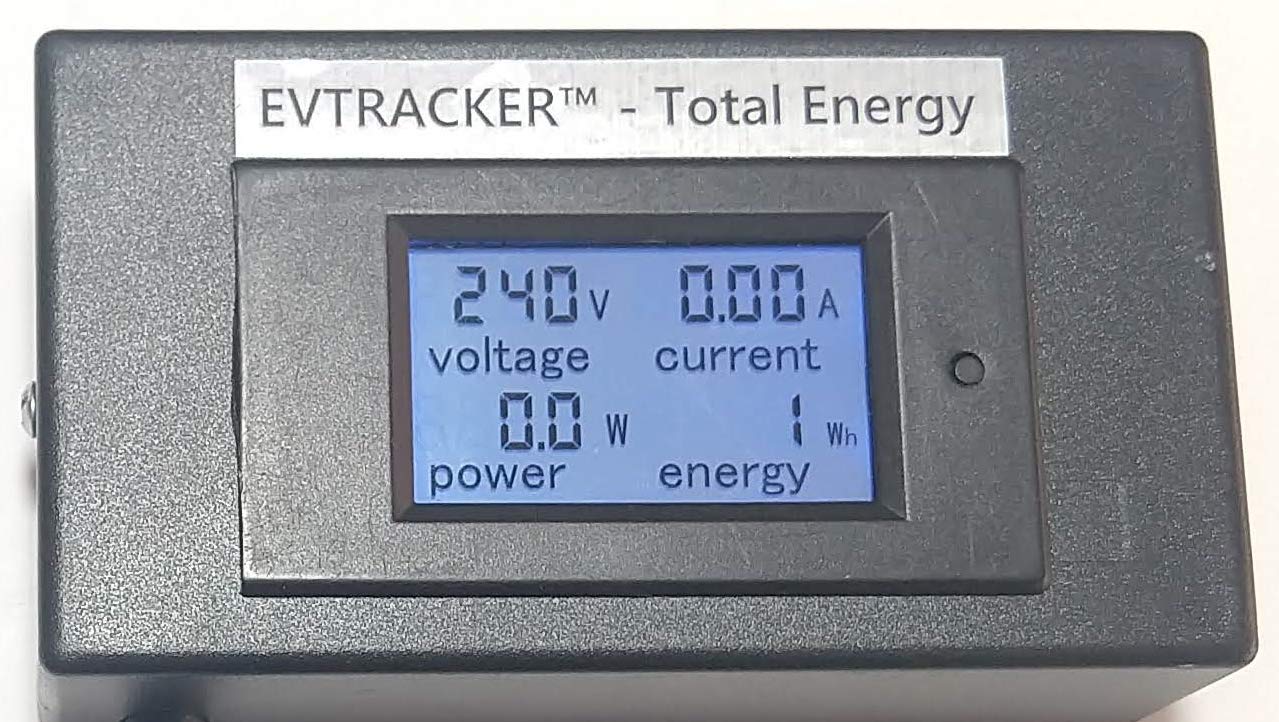

The EVTRACKER display includes voltage, current (amps), power (watts) and energy (kWatt-hours). The display is a separate small box (5.3 x 3 x 2d”) that may be located for convenient viewing up to 3’ from the 240V outlet.

INSTALLATION Plug the EVTRACKER male 240V plug into the wall and plug the EV Charger into the EVTRACKER 240V female outlet. Locate the EVTRACKER display for easy viewing upto 28” above.

OPERATION Any time the EVTRACKER is connected to 240V the display will turn on and display the voltage. The display will read zero amps & watts. When the EV Charger is connected a small amount of current will be displayed (ie the EV Charger standby current). When the EV Charger is connected to the vehicle, the EVTRACKER display will show the voltage, current, watts and total energy used (kWatt-hours) by the electric vehicle.

ENERGY DISPLAY RESET The EVTRACKER displays the total energy consumed by the Vehicle (and a small amount by the EV Charger). The total energy will be retained even when the EVTRACKER is unplugged. To reset the total energy, press the reset button to the right of the display and hold (> 10 sec) until the ‘energy’ display blinks. Press the button again to reset the total energy.
