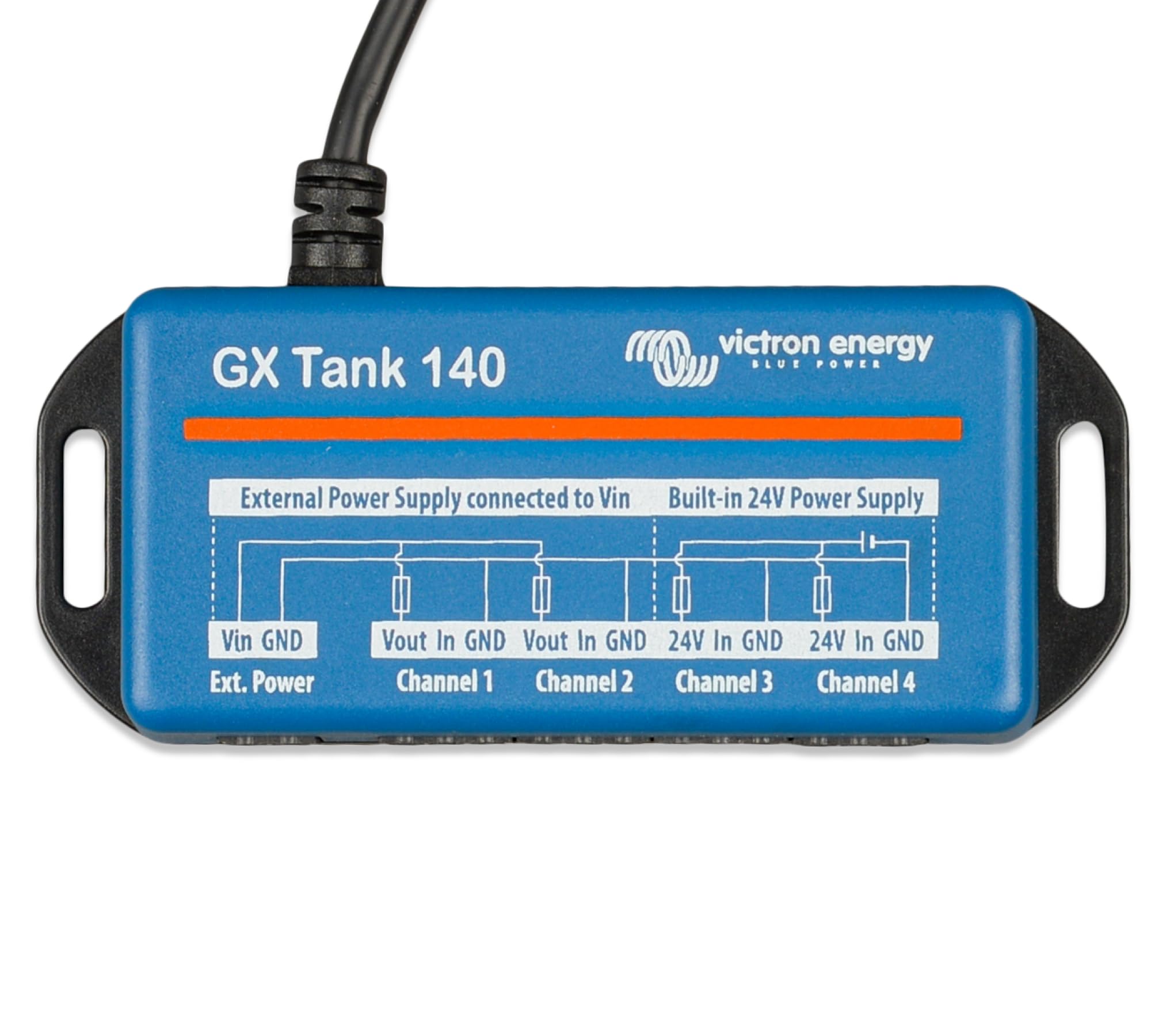

Victron Energy GX Tank 140 takes readings from up to four tank level sensors. It is an accessory for our range of Victron Energy GX system monitoring products, of which the Victron Energy Cerbo GX is the most commonly used model
Victron Energy GX Tank 140 is compatible with current senders (4 to 20 mA) as well as voltage senders (0 to 10 V)
Tank sender wiring is kept as simple as possible two of the four inputs provide a 24 V power supply, to power the sender. The other two channels do require an external power supply, and there is a power in terminal together with fused outputs to facilitate that
Upper and lower limits are configurable, to allow using senders that provide only part of the scale, for example 0 to 5 V. To provide a stable reading, the readings are averaged damping. The damping can be configured between 1 and 60 seconds
Faulty sensors and wiring issues are detected an alarm will be raised when values are out of range
